Taut fabric backrest
Improved seat: + 20 mm of high-density foam

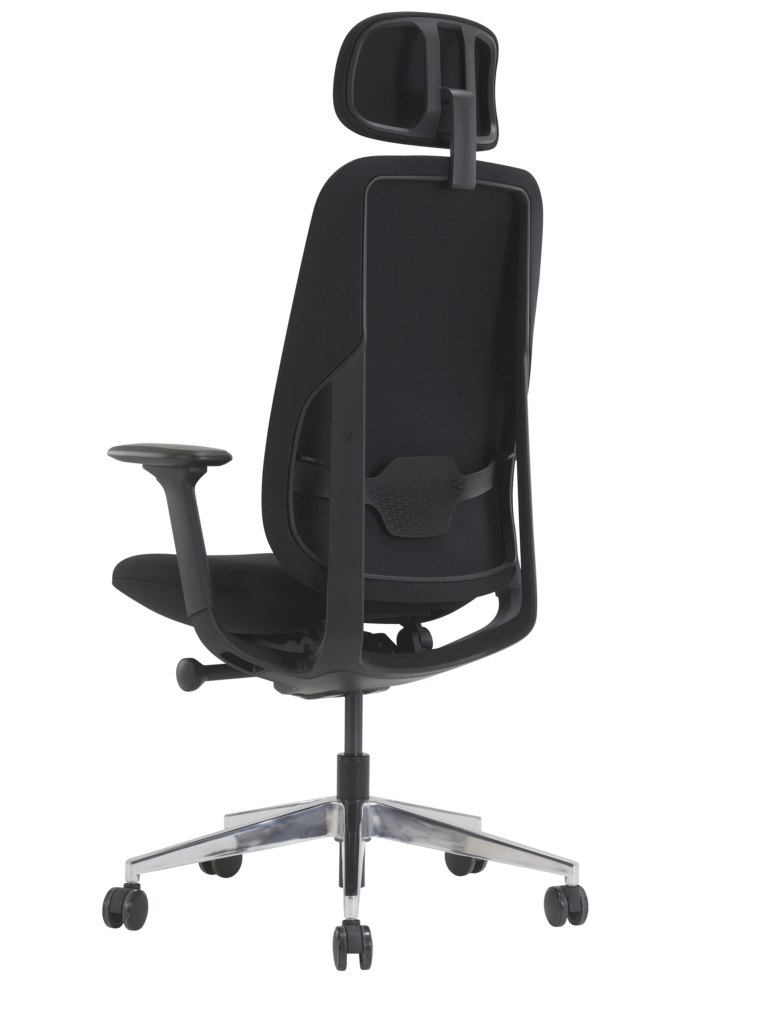

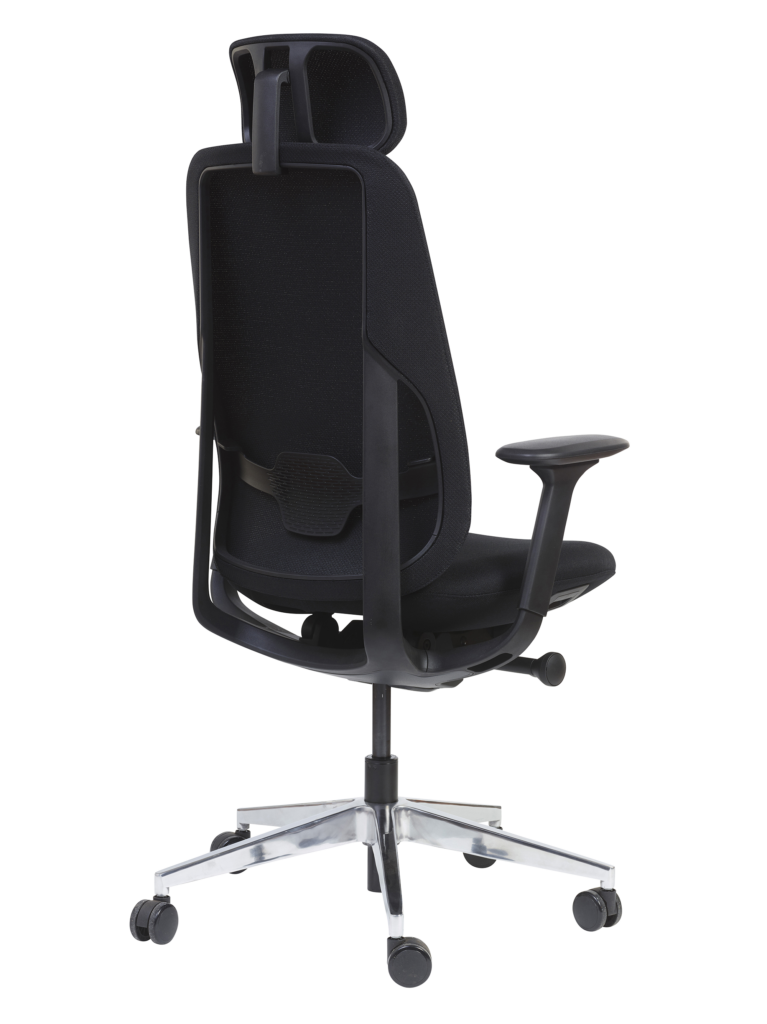

Height- and depth-adjustable lumbar support
Soft-touch 4D adjustable armrests
Seat translation
Voltage adjustable by lever, 6 intensities
Class 4 lift
Aluminium base, 60 mm castors

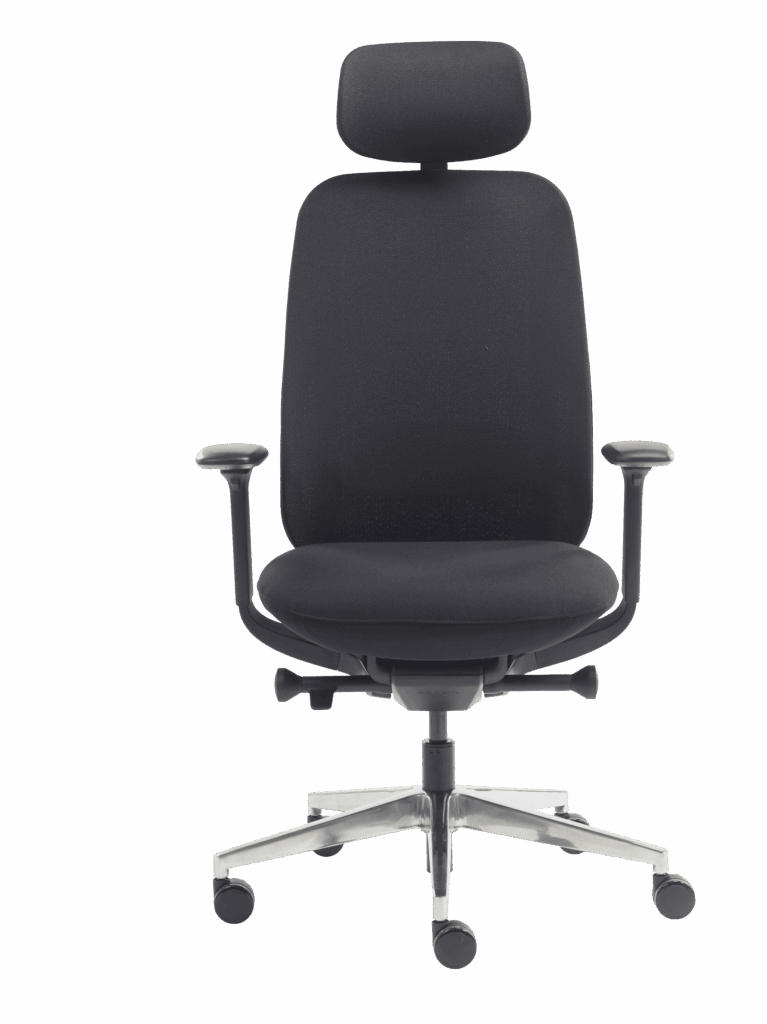

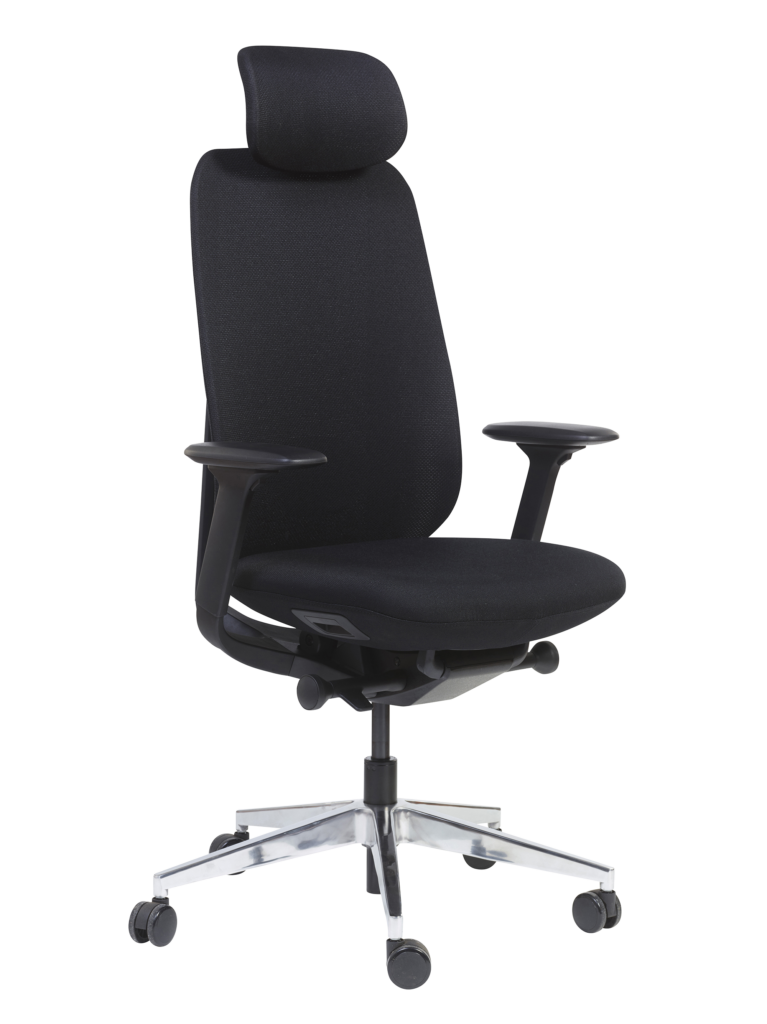

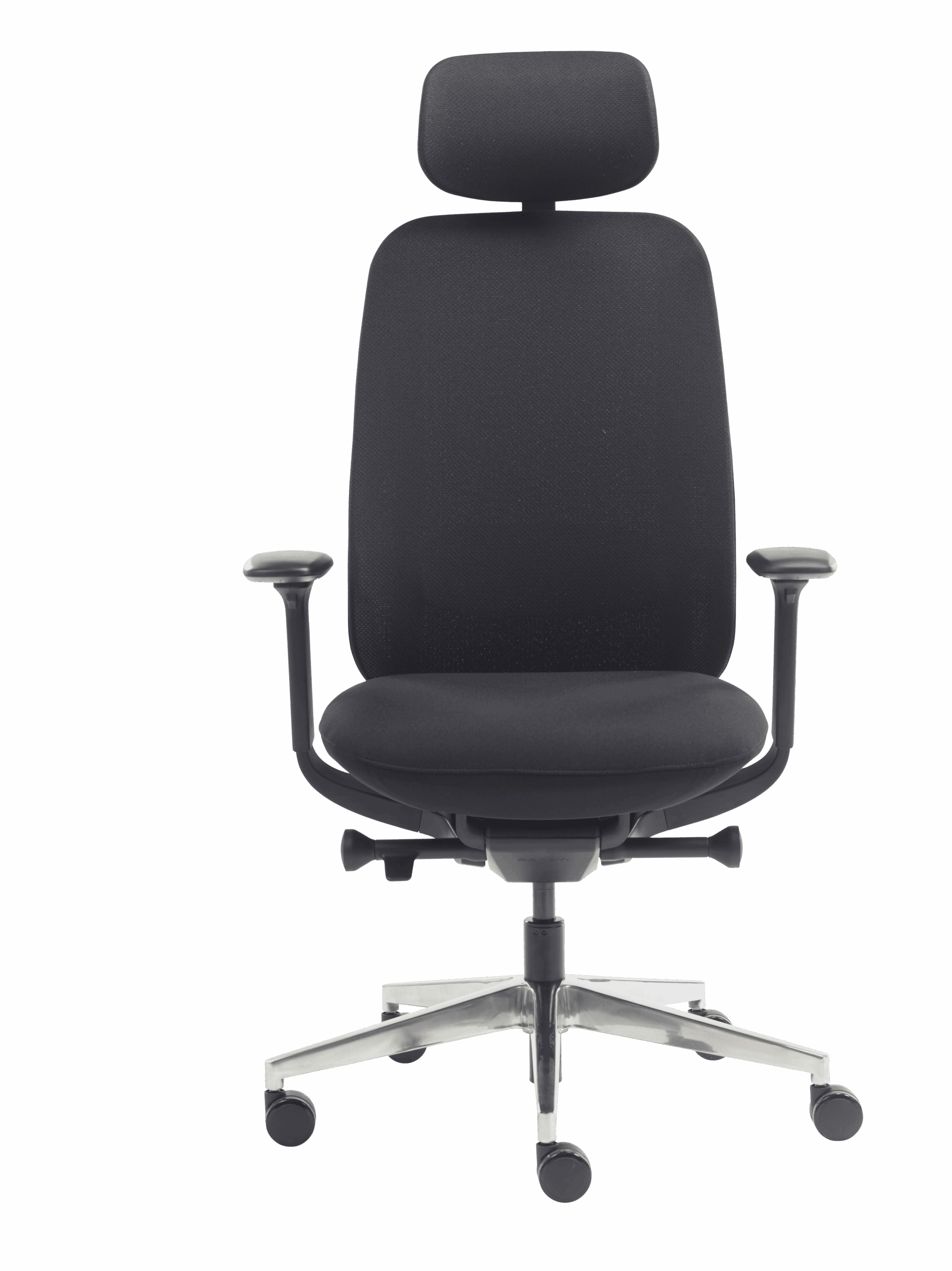

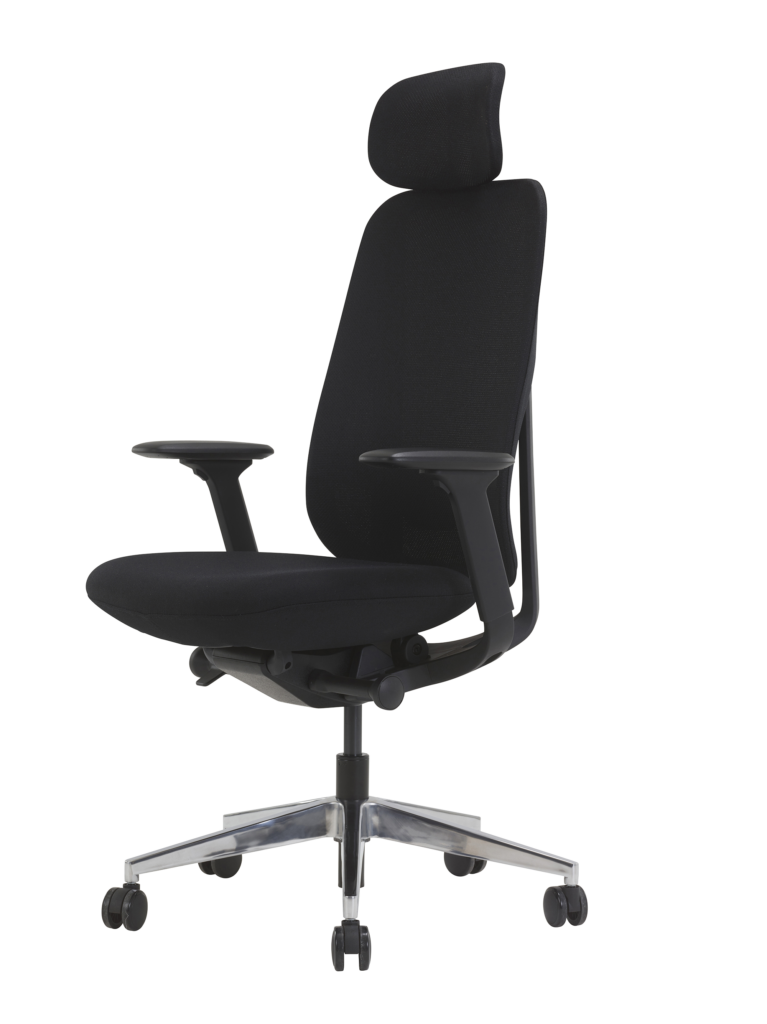

Optional headrest
Design PETER HORN
STRUCTURE
SEAT
Anatomically-shaped, glass-fiber-filled nylon support, 5 mm thick.
Elastic support between seat support and foam for greater comfort
BACKREST
Honeycomb support in glass-fiber-filled polyamide in black (PA 66% + glass-fiber 30%)
Back shell in black polypropylene covered with Mesh fabric
FILLING
Foam bonded to structure, density 50 kg/m3, thickness 70 mm.
COVERING
DuPont stretch flannelette
The material is produced using an exclusive weaving process. What’s more, it offers solid support and is durable. The unique fabric structure is both breathable and opaque.
LINK
Seat/backrest with reinforced polypropylene structure
MECHANISM
Donati synchronous system, lockable in 5 positions with backrest anti-retraction system and adjustable in 6 different intensities according to user weight.
Adjustment by lever for backrest locking/unlocking and lever for seat height adjustment by self-supporting gas spring, brand KGS class 4.
Seat depth adjustment by sliding spring system
Adjustable lumbar support.
BACKREST
Height-adjustable via trigger
Depth-adjustable cuff
Lateral inward and outward cuff adjustment
FEATURES
5-spoke polished cast-aluminium star – 700mm.
60mm diameter polyamide double-roller castors, polypropylene housing and 11mm diameter steel pivot.
